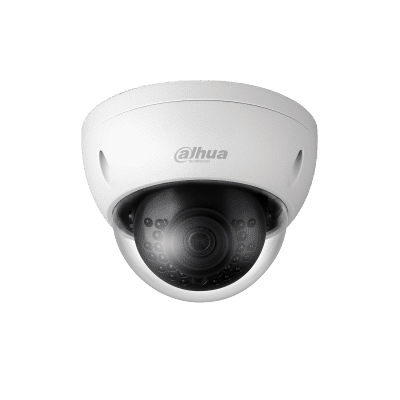

دوربین مداربسته داهوا- DH-IPC-HDBW4830EP-AS

1/2.5” 4K progressive scan CMOS
H.265+/H.265/H.264+/H.264 encoding
15fps@4K(3840×2160),25/30fps@3Mp(2304×1296)
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
4mm fixed lens
Max. IR LEDs Length 30m
Alarm in/out
Audio in/out
Micro SD card memory , 128 GB
IP67,IK10, PoE
Smart Detection (Tripwire|Intrusion|Scene Change|Object Abandoned/Missing |Face)

DH-IPC-HDBW4830EP-AS

شناسه محصول: DAHUA-26967
برند : داهوا

مقایسه
افزودن به علاقه مندی
17 افرادی که اکنون این محصول را تماشا می کنند!

توضیحات

مشخصات

ویژگی محصول

سنسور تصویر1/2.5” 8Megapixel progressive scan CMOS
effective-pixels3840(H)x2160(V)
RAM/ROM512MB/32MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual, 1/3(4)~1/100000s
حداقل نور مورد نیاز0.05Lux/F1.6( Color,1/3s,30IRE), 0.2Lux/F1.6( Color,1/30s,30IRE), 0Lux/F1.6(IR on)
S/N RatioMore than 50dB
ir-distanceDistance up to 30m(98ft)
IR On/Off ControlAuto / Manual
IR LEDs24
lens-typeFixed
Mount TypeBoard-in
Focal Length4mm
Max ApertureF1.6
Angle of ViewH:87° , V:48°
optical-zoomN/A
Focus ControlFixed
Close Focus DistanceN/A
فرمت فشرده سازیH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
کیفیت تصویر1080P(1920×1080), 3M(2048×1536), 3M(2304×1296), 4K(3840×2160), 5M(2560×1920), 6M(3072×2048), 720P(1280×720), CIF(352×288/352×240), D1(704×576/704×480), VGA(640×480)
frame-rateMain Stream: 4K(1~15fps)/3M(1~25/30fps), Sub Stream: D1(1~25/30fps), Third Stream: 720P(1~25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.264: 24K ~ 10240Kbps, H.265: 14K ~ 9984Kbps
DAY/NightAuto ICR, B/W, COLOR
BLC ModeBLC, DWDR, HLC
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto, Manual
Noise Reduction3D-DNR
Motion DetetionOff, On (4 Zone, Rectangle)
Region of Interestoff, On (4 Zone)
Smart IRSupport
DefogN/A
Digital Zoom16x
Flip0°/90°/180°/270°
Mirroroff/on
Privacy MaskingOff, On (4 Area, Rectangle)
Video InterfaceN/A
Audio Interface1/1 channel In/Out
rs485N/A
Alarm1 channel In: 5mA 5VDC, 1 channel Out: 300mA 12VDC
power-supplyDC12V, PoE (802.3af)(Class 0)
پورت ها<5W
CasingMetal
DimensionsΦ109.9mm×81mm (4.33”×3.19”)
Net Weight0.41kg (0.91lb)
Gross Weight0.53 kg (1.17lb)
برندداهوا
