دوربین مدار بسته داهوا- TPC-SD8320

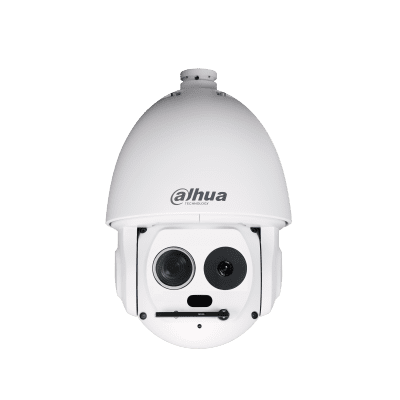

Thermal Network Hybrid Dome Camera
> 336×256 VOx uncooled thermal sensor technology
> Athermalized Lens(thermal), Focus-free
> 1/1.9” 2Megapixel progressive scan Sony CMOS
> Powerful 30x optical zoom
> Support fire detection & alarm
> Max 240°/s pan speed, 360° endless pan rotation
> Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
> 7/2 alarm in/out
> Micro SD memory, IP66

شناسه محصول: DAHUA-12366
برند : داهوا

10 افرادی که اکنون این محصول را تماشا می کنند!

توضیحات

داهوا

مشخصات

ویژگی محصول

image-sensor-visible1/1.9″ 2M CMOS
image-sensor-thermalUncooled VOx Microbolometer
lens-thermal25mm/35mm/50mm
lens-visible6mm ~ 180mm
thermal-sensivity<40mK@f/1.0
effective-pixels336(H) x 256(V)
angle-of-view-thermalH: 13°/9.3°/6.5°
angle-of-view-visibleH: 59° ~ 2.4°
zoom30x
temperature-rangeaccuracyN/A
measurement-ruleN/A
temperature-alarmN/A
video-compressionH.264, MJPEG
frame-rateThermal: 1280*1024 (default)/720P@1~25/30fps, Visible: 1080P (default)/720P@1~25/30fps
preset-speedPan: 0.1° ~240° /s ;Tilt: 0.1° ~200° /s
intelligent-videoIVS, Fire detecton & alarm
ingress-protectionIP66
working-temerature40°C~+70°C-
قدرتAC24V, <38W
حداقل نور مورد نیاز0.0001Lux@F1.5 (B/W), 0.001Lux@F1.5 (Color), 0Lux@F1.5 (IR On)
pan/tilt300 presets Pan: 0° ~ 360°endless Tilt: -20° ~ 90°
compatibilityONVIF Profile S&G, PSIA, CGI
ir-distance150m
برندداهوا
