نمایش 85–96 از 136 نتیجه
فیلتر بر اساس برند

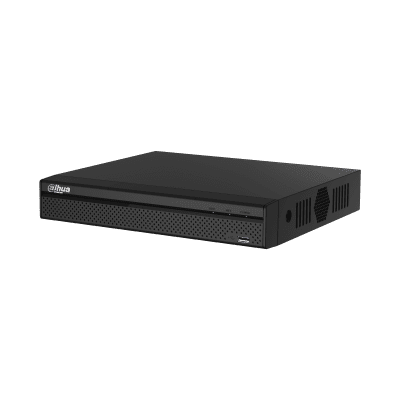

دستگاه XVR داهوا- DH-XVR5104HS-X1
ناموجود
شناسه محصول:
DAHUA-45793
| تعداد دوربین های آنالوگ: | 4Channel, BNC |
|---|---|
| دوربین HDCVI: | 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| دوربین AHD: | 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| دوربین TVI: | 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| دوربین CVBS: | PAL/NTSC |
| تعداد دوربین IP: | 4+2Channel, each channel up to 6MP |
| ورودی و خروجی صدا: | 1/1RCA |
| گفت و گو دو طرفه: | Reuse audio in/out, RCA |
| فرمت فشرده سازی: | H.265+/H.265/H.264+/H.264 |
| وضوح تصویر: | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| نرخ ذخیره سازی: | Main stream: 5M-N(1~10fps), 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps) Sub stream: D1/CIF(1~15fps) |
| پورت های خروجی تصویر: | 1 HDMI ,1 VGA |
| پورت شبکه: | 1RJ-45 Port (100M) |
| پروتکل ارتباطی: | ONVIF 16.12, CGI ConforONVIF |
| هارد داخلی: | 1SATA port, up to 6 TB capacity |
| eSATA: | ❌ |
| پورت USB: | 2USB 2.0 |
| RS232: | ❌ |
| RS485: | 1Port, for PTZ Control |
| برند | داهوا |

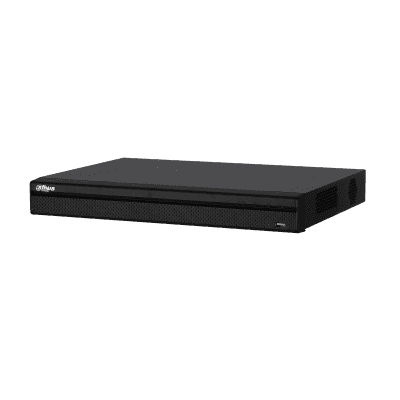

دستگاه XVR داهوا- DH-XVR5216AN-S2
موجود در انبار
شناسه محصول:
DAHUA-28205
| Analog Camera Input | 16Channel, BNC |
|---|---|
| HDCVI Camera | 1080P@25/30fps, 4MP, 720P@25/30fps, 720P@50/60fps |
| AHD Camera | 1080P@25/30, 4MP, 720P@25/30fps |
| TVI Camera | 1080P@25/30, 4MP, 720P@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 16+8 Channel, each channel up to 5MP |
| audio-in-out | 1/1, RCA |
| گفتوگوی دو طرفه: | RCA, Reuse audio in/out |
| فرمت فشرده سازی | H.264+/H.264 |
| کیفیت تصویر | 1080N, 4M-N, 720P, 960H, BCIF, CIF, D1, HD1, QCIF |
| Record Rate | Main stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps), Sub steram: D1/CIF/QCIF(1~15fps) |
| Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
| Interface | 1 HDMI, 1 VGA |
| پورت خروجی: | 1024×768, 1280×1024, 1280×720, 1920×1080 |
| Multi-screen Display | When IP extension mode enabled:1/4/8/9/16/25, When IP extension mode not enabled:1/4/8/9/16 |
| Network Interface | 1 RJ-45 Port (1000M) |
| Max. User Access | 128 users |
| Smart Phone | Android, iPad, iPhone |
| Interoperability | CGI Conformant, ONVIF 2.42 |
| هشدار ورودی | N/A |
| Relay Output | N/A |
| Playback | 1/4/9/16 |
| Backup Mode | Network, USB Device |
| حافظه هارد | 2 SATA Port, up to 8TB capacity |
| پورت ها | <15W (Without HDD) |
| usb | 1 USB 2.0, 1 USB3.0 |
| rs232 | N/A |
| rs485 | 1 Port, for PTZ Control |
| power-supply | DC12V/4A |
| Dimensions | 1U, 375mm×287mm×53mm (14.8″ x 11.3″ x 2.1″) |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Third-party Support | and more, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dahua, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek |
| برند | داهوا |

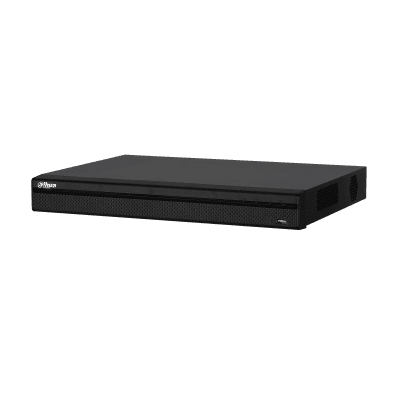

دستگاه XVR داهوا- DH-XVR5232AN-S2
موجود در انبار
شناسه محصول:
DAHUA-28273
| Analog Camera Input | 32 Channel, BNC |
|---|---|
| HDCVI Camera | 1080P@25/30fps, 4MP, 720P@25/30fps, 720P@50/60fps |
| AHD Camera | 1080P@25/30, 4MP, 720P@25/30fps |
| TVI Camera | 1080P@25/30, 4MP, 720P@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 32 Channel, each channel up to 5MP |
| audio-in-out | 1/1, RCA |
| گفتوگوی دو طرفه: | RCA, Reuse audio in/out |
| فرمت فشرده سازی | H.264+/H.264 |
| کیفیت تصویر | 1080N, 4M-N, 720P, 960H, BCIF, CIF, D1, HD1, QCIF |
| Record Rate | Main stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps), Sub steram: D1/CIF/QCIF(1~15fps) |
| Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
| Interface | 1 HDMI, 1 TV, 1 VGA |
| پورت خروجی: | 1024×768, 1280×1024, 1280×720, 1920×1080 |
| Multi-screen Display | 1/4/8/9/16/25/36 |
| Network Interface | 1 RJ-45 Port (1000M) |
| Max. User Access | 128 users |
| Smart Phone | Android, iPad, iPhone |
| Interoperability | CGI Conformant, ONVIF 2.42 |
| هشدار ورودی | N/A |
| Relay Output | N/A |
| Playback | 1/4/9/16 |
| Backup Mode | Network, USB Device |
| حافظه هارد | 2 SATA Port, up to 8TB capacity |
| پورت ها | <20W (Without HDD) |
| usb | 1 USB 2.0, 1 USB 3.0 |
| rs232 | N/A |
| rs485 | 1 Port, for PTZ Control |
| power-supply | DC12V 5A |
| Dimensions | 1U, 375mm×287mm×53mm (14.8″ x 11.3″ x 2.1″) |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Third-party Support | and more, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dahua, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek |
| برند | داهوا |

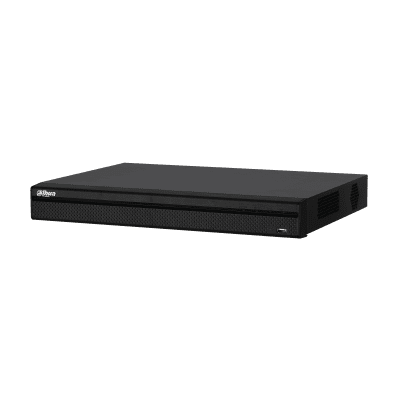

دستگاه XVR داهوا- DH-XVR5232AN-X
موجود در انبار
شناسه محصول:
DAHUA-45901
| تعداد دوربین های آنالوگ: | 32 Channel, BNC |
|---|---|
| دوربین HDCVI: | 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| دوربین AHD: | 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| دوربین TVI: | 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| دوربین CVBS: | PAL/NTSC |
| تعداد دوربین IP: | 32Channel, each channel up to 6MP |
| ورودی و خروجی صدا: | 1/1, RCA |
| گفت و گو دو طرفه: | Reuse audio in/out, RCA |
| فرمت فشرده سازی: | H.265+/H.265/H.264+/H.264 |
| وضوح تصویر: | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| نرخ ذخیره سازی: | Main stream: 5M-N(1~10fps), 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps) Sub stream: D1/CIF(1~15fps |
| پورت های خروجی تصویر: | 32CH:1 HDMI, 1 VGA, 1 TV |
| پورت شبکه: | 32CH:1 RJ-45 Port (1000M) |
| پروتکل ارتباطی: | ONVIF 16.12, CGI Conformant |
| هارد داخلی: | 2SATA Port, up to 10TB capaciy |
| eSATA: | ❌ |
| پورت USB: | 1USB 2.0 , 1 USB 3.0 |
| RS232: | ❌ |
| RS485: | 1Port, for PTZ Control |
| برند | داهوا |

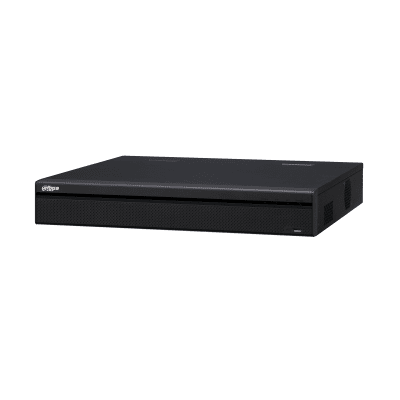

دستگاه XVR داهوا- DH-XVR5416L
موجود در انبار
شناسه محصول:
DAHUA-28243
| Display Interface | 1 TV, 1 VGA, 2 HDMI |
|---|---|
| پورت خروجی: | 1024×768, 1280×1024, 1280×720, 1920×1080 |
| Multi-screen Display | 1/4/8/9/16/25 |
| هشدار ورودی | 8/16/16 |
| Relay Output | 6 |
| Playback | 1/4/9/16 |
| Backup Mode | Network, USB Device |
| حافظه هارد | 4 SATA Ports, up to 8TB capacity for each disk |
| پورت ها | <30W (Without HDD) |
| usb | 3 USB Ports (1 USB 2.0 , 2 USB 3.0) |
| rs232 | 1 port, For PC communication & Keyboard |
| rs485 | 1 Port, for PTZ Control |
| rs422 | 1 Port, for PTZ Control |
| Third-party Support | and more, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dahua, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek |
| HDCVI Camera Input | 16Channel |
| IP Camera Input | 16+8 Channel, each channel up to 5MP |
| audio-in-out | 4/1, BNC |
| گفتوگوی دو طرفه: | 1 Mic In, 1 Mic Out, BNC |
| فرمت فشرده سازی | H.264+/H.264 |
| کیفیت تصویر | 1080N, 720P, 960H, BCIF, CIF, D1, HD1, QCIF |
| Record Rate | Main stream: 1080P(1~15fps) 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps), Sub steram:D1/CIF/QCIF(1~15fps) |
| Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
| Network Interface | 1 RJ-45 Port (1000M) |
| Max. User Access | 128 users |
| Smart Phone | Android, iPad, iPhone |
| Interoperability | CGI Conformant, ONVIF 2.42 |
| power-supply | 50/60Hz, AC100V-240V |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Dimensions | 1.5U, 440mm×417mm×76mm (17.3″x 16.4″ x 3.0″) |
| برند | داهوا |
دستگاه XVR داهوا- DH-XVR5432L
موجود در انبار
شناسه محصول:
DAHUA-28276
| Display Interface | 1 TV, 1 VGA, 2 HDMI |
|---|---|
| پورت خروجی: | 1024×768, 1280×1024, 1280×720, 1920×1080 |
| Multi-screen Display | 1/4/8/9/16/25/36 |
| هشدار ورودی | 8/16/16 |
| Relay Output | 6 |
| Playback | 1/4/9/16 |
| Backup Mode | Network, USB Device |
| حافظه هارد | 4 SATA Ports, up to 8TB capacity for each disk |
| پورت ها | <30W (Without HDD) |
| usb | 3 USB Ports (1 USB 2.0 , 2 USB 3.0) |
| rs232 | 1 port, For PC communication & Keyboard |
| rs485 | 1 Port, for PTZ Control |
| rs422 | 1 Port, for PTZ Control |
| Third-party Support | and more, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dahua, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek |
| HDCVI Camera Input | 32 Channel |
| IP Camera Input | 32 Channel, each channel up to 5MP |
| audio-in-out | 4/1, BNC |
| گفتوگوی دو طرفه: | 1 Mic In, 1 Mic Out, BNC |
| فرمت فشرده سازی | H.264+/H.264 |
| کیفیت تصویر | 1080N, 720P, 960H, BCIF, CIF, D1, HD1, QCIF |
| Record Rate | Main stream: 1080P(1~15fps) 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps), Sub steram:D1/CIF/QCIF(1~15fps) |
| Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
| Network Interface | 1 RJ-45 Port (1000M) |
| Max. User Access | 128 users |
| Smart Phone | Android, iPad, iPhone |
| Interoperability | CGI Conformant, ONVIF 2.42 |
| power-supply | 50/60Hz, AC100V-240V |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Dimensions | 1.5U, 440mm×417mm×76mm (17.3″x 16.4″ x 3.0″) |
| برند | داهوا |
دستگاه XVR داهوا- DH-XVR5832S
موجود در انبار
شناسه محصول:
DAHUA-28278
| Display Interface | 1 TV, 1 VGA, 2 HDMI |
|---|---|
| پورت خروجی: | 1024×768, 1280×1024, 1280×720, 1920×1080 |
| Multi-screen Display | 1/4/8/9/16/25/36 |
| هشدار ورودی | 8/16/16 |
| Relay Output | 6 |
| Playback | 1/4/9/16 |
| Backup Mode | Network, USB Device |
| حافظه هارد | 8 SATA Ports, up to 8TB capacity for each disk |
| پورت ها | <35W (Without HDD) |
| usb | 4 USB Ports (2 USB 2.0 , 2 USB 3.0) |
| rs232 | 1 port, For PC communication & Keyboard |
| rs485 | 1 Port, for PTZ Control |
| rs422 | 1 Port, for PTZ Control |
| Third-party Support | and more, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dahua, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek |
| HDCVI Camera Input | 32 Channel |
| IP Camera Input | 32 Channel, each channel up to 5MP |
| audio-in-out | 1 Audio Out, 8/16/16 Audio In, BNC |
| گفتوگوی دو طرفه: | 1 Mic In, 1 Mic Out, BNC |
| فرمت فشرده سازی | H.264+/H.264 |
| کیفیت تصویر | 1080N, 720P, 960H, BCIF, CIF, D1, HD1, QCIF |
| Record Rate | Main stream: 1080P(1~15fps) 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps), Sub steram:D1/CIF/QCIF(1~15fps) |
| Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
| Network Interface | 2 RJ-45 Port (1000M) |
| Max. User Access | 128 users |
| Smart Phone | Android, iPad, iPhone |
| Interoperability | CGI Conformant, ONVIF 2.42 |
| power-supply | 50/60Hz, AC100V-240V |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Dimensions | 2U, 440mm×455mm×95mm (17.3″ x 17.9″ x 3.7″) |
| برند | داهوا |

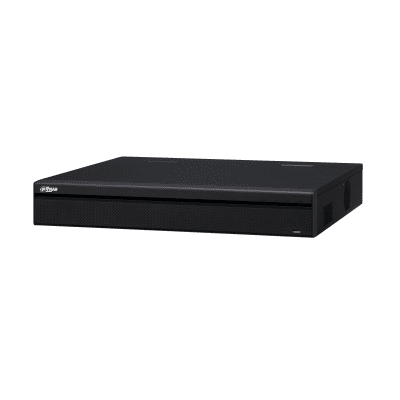

دستگاه XVR داهوا- DH-XVR5832S-X
موجود در انبار
شناسه محصول:
DAHUA-45913
| تعداد دوربین های آنالوگ: | 32Channel, BNC |
|---|---|
| دوربین HDCVI: | 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| دوربین AHD: | 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| دوربین TVI: | 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| دوربین CVBS: | PAL/NTSC |
| تعداد دوربین IP: | 32Channel, each channel up to 8MP |
| ورودی و خروجی صدا: | 1/1, RCA |
| گفت و گو دو طرفه: | Reuse audio in/out, RCA |
| فرمت فشرده سازی: | H.265+/H.265/H.264+/H.264 |
| وضوح تصویر: | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| نرخ ذخیره سازی: | Main stream: 5M-N(1~10fps), 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps) Sub stream: D1/CIF(1~15fps) |
| پورت های خروجی تصویر: | 2CH:1 HDMI, 1 VGA, 1 TV |
| پورت شبکه: | 1RJ-45 Port (1000M) |
| پروتکل ارتباطی: | ONVIF 16.12, CGI Conformant |
| هارد داخلی: | 4sATA Ports, up to 10TB capacity |
| eSATA: | 1 Port |
| پورت USB: | 1USB 2.0, 2 USB 3.0 |
| RS232: | 1port, for PC communication & Keyboard |
| RS485: | 1Port, for PTZ Control |
| برند | داهوا |
دستگاه XVR داهوا- DH-XVR7416L
موجود در انبار
شناسه محصول:
DAHUA-28249
| Display Interface | 1 TV, 1 VGA, 2 HDMI |
|---|---|
| پورت خروجی: | 1024×768, 1280×1024, 1280×720, 1920×1080 |
| Multi-screen Display | 1/4/8/9/16/25 |
| هشدار ورودی | 16 |
| Relay Output | 6 |
| Playback | 1/4/9/16 |
| Backup Mode | Network, USB Device |
| حافظه هارد | 4 SATA Ports, up to 8TB capacity for each disk |
| پورت ها | <30W (Without HDD) |
| usb | 3 USB Ports (1 USB 2.0 , 2 USB 3.0) |
| rs232 | 1 port, For PC communication & Keyboard |
| rs485 | 1 Port, for PTZ Control |
| rs422 | 1 Port, for PTZ Control |
| Third-party Support | and more, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dahua, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek |
| HDCVI Camera Input | 16Channel |
| IP Camera Input | 16+8 Channel, each channel up to 5MP |
| audio-in-out | 4/1, BNC |
| گفتوگوی دو طرفه: | 1 Mic In, 1 Mic Out, BNC |
| فرمت فشرده سازی | H.264+/H.264 |
| کیفیت تصویر | 720P, 960H, BCIF, CIF, D1, HD1, QCIF |
| Record Rate | Main stream: 1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps), Sub steram:D1/CIF/QCIF(1~25/30fps) |
| Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
| Network Interface | 1 RJ-45 Port (1000M) |
| Max. User Access | 128 users |
| Smart Phone | Android, iPad, iPhone |
| Interoperability | CGI Conformant, ONVIF 2.42 |
| power-supply | 50/60Hz, AC100V-240V |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
| Storage Conditions | 0°C ~ +50°C (+32°F ~ +122°F), 0 ~ 90% RH |
| Dimensions | 1.5U, 440mm×417mm×76mm (17.3″x 16.4″ x 3.0″) |
| برند | داهوا |

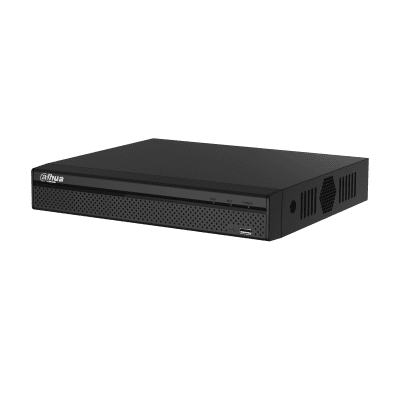

دستگاه XVR داهوا- DHI-XVR4104HS-S2
موجود در انبار
شناسه محصول:
DAHUA-27987
| Analog Camera Input | 4Channel, BNC |
|---|---|
| HDCVI Camera | 1080P@25/30fps, 720P@25/30fps |
| AHD Camera | 1080P@25/30, 720P@25/30fps |
| TVI Camera | 1080P@25/30, 720P@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | each channel up to 2MP |
| audio-in-out | 1/1, RCA |
| گفتوگوی دو طرفه: | RCA, Reuse audio in/out |
| فرمت فشرده سازی | H.264 |
| کیفیت تصویر | 1080N, 720P, 960H, BCIF, CIF, D1, HD1, QCIF |
| Record Rate | 1080N, 720P, 960H, BCIF, CIF, D1, HD1, QCIF (1~25/30fps), Sub steram:4CH:CIF/QCIF(1~15fps) |
| Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
| Interface | 1 HDMI, 1 VGA |
| پورت خروجی: | 1024×768, 1280×1024, 1280×720, 1920×1080 |
| Multi-screen Display | When IP extension mode enabled:1/4/6, When IP extension mode not enabled:1/4 |
| Network Interface | 1 RJ-45 Port (100M) |
| Max. User Access | 128 users |
| Smart Phone | Android, iPad, iPhone |
| Interoperability | CGI Conformant, ONVIF 2.42 |
| هشدار ورودی | N/A |
| Relay Output | N/A |
| Playback | 1/4 |
| Backup Mode | Network, USB Device |
| حافظه هارد | 1 SATA Port, up to 8TB capacity |
| پورت ها | <10W (Without HDD) |
| usb | 2 USB 2.0 |
| rs232 | N/A |
| rs485 | 1 Port, for PTZ Control |
| power-supply | DC12V 2A |
| Dimensions | 260×236×48mm(10.2″×9.3″×1.9″), Compact 1U |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Third-party Support | and more, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dahua, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek |
| برند | داهوا |
دستگاه XVR داهوا- DHI-XVR4108HS-S2
موجود در انبار
شناسه محصول:
DAHUA-28187
| Analog Camera Input | 8Channel, BNC |
|---|---|
| HDCVI Camera | 1080P@25/30fps, 720P@25/30fps |
| AHD Camera | 1080P@25/30, 720P@25/30fps |
| TVI Camera | 1080P@25/30, 720P@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | each channel up to 5MP |
| audio-in-out | 1/1, RCA |
| گفتوگوی دو طرفه: | RCA, Reuse audio in/out |
| فرمت فشرده سازی | H.264 |
| کیفیت تصویر | 1080N, 720P, 960H, BCIF, CIF, D1, HD1, QCIF |
| Record Rate | 1080N, 720P, 960H, BCIF, CIF, D1, HD1, QCIF (1~25/30fps), Sub steram:4CH:CIF/QCIF(1~15fps) |
| Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
| Interface | 1 HDMI, 1 VGA |
| پورت خروجی: | 1024×768, 1280×1024, 1280×720, 1920×1080 |
| Multi-screen Display | When IP extension mode enabled:1/4/8/9/16, When IP extension mode not enabled:1/4/8/9 |
| Network Interface | 1 RJ-45 Port (100M) |
| Max. User Access | 128 users |
| Smart Phone | Android, iPad, iPhone |
| Interoperability | CGI Conformant, ONVIF 2.42 |
| هشدار ورودی | N/A |
| Relay Output | N/A |
| Playback | 1/4/9 |
| Backup Mode | Network, USB Device |
| حافظه هارد | 1 SATA Port, up to 8TB capacity |
| پورت ها | <10W (Without HDD) |
| usb | 2 USB 2.0 |
| rs232 | N/A |
| rs485 | 1 Port, for PTZ Control |
| power-supply | DC12V 2A |
| Dimensions | 260×236×48mm(10.2″×9.3″×1.9″), Compact 1U |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Third-party Support | and more, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dahua, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek |
| برند | داهوا |
دستگاه XVR داهوا- DHI-XVR5104HS-4M
موجود در انبار
شناسه محصول:
DAHUA-28199
| Analog Camera Input | 4Channel, BNC |
|---|---|
| HDCVI Camera | 1080P@25/30fps, 4MP, 720P@25/30fps, 720P@50/60fps |
| AHD Camera | 1080P@25/30, 3MP, 4MP, 5MP, 720P@25/30fps |
| TVI Camera | 1080P@25/30, 3MP, 5MP, 720P@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 4+2 Channel, each channel up to 5MP |
| audio-in-out | 1/1, RCA |
| گفتوگوی دو طرفه: | RCA, Reuse audio in/out |
| فرمت فشرده سازی | H.264+/H.264 |
| کیفیت تصویر | 3mp, 4mp, 720P, 960H, CIF, D1, QCIF |
| Record Rate | 1080P, 720P, 960H, CIF, D1, Main stream: 4MP/3MP(1~15fps), QCIF (1~25/30fps) |
| Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
| Interface | 1 HDMI, 1 VGA |
| پورت خروجی: | 1024×768, 1280×1024, 1280×720, 1920×1080, 2560×1440 |
| Multi-screen Display | When IP extension mode enabled:1/4/6, When IP extension mode not enabled:1/4 |
| Network Interface | 1 RJ-45 Port (100M) |
| Max. User Access | 128 users |
| Smart Phone | Android, iPad, iPhone |
| Interoperability | CGI Conformant, ONVIF 2.42 |
| هشدار ورودی | N/A |
| Relay Output | N/A |
| Playback | 1/4 |
| Backup Mode | Network, USB Device |
| حافظه هارد | 1 SATA Port, up to 8TB capacity |
| پورت ها | <10W (Without HDD) |
| usb | 2 USB Ports (2 USB 2.0) |
| rs232 | N/A |
| rs485 | 1 Port, for PTZ Control |
| power-supply | DC12V 2A |
| Dimensions | 260×236×48mm(10.2″×9.3″×1.9″), Compact 1U |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Third-party Support | and more, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dahua, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek |
| برند | داهوا |
پک سیستم مداربسته
